Many architects and designers will tell you that the most enjoyable part of their job is when they’re creating the initial concepts of their designs. While most utilize computers, some still rely on pencils, markers, and paper as they develop their ideas on the proverbial drawing board. The following pages offer glimpses of various concepts and sketches still in the design development stage. While some of these ideas may not continue beyond their colored-pencil studies, others will eventually be developed into construction plans. There’s no doubt that computers and 3-D software programs offer incredible opportunities for design excellence. Still, it’s inspiring to see the design process unfold from artful initial renderings created by hand, with just a pen or pencil, paper, and drawing board.


Starter Home, Plan 2

DESIGNER: Larry Garnett Designs,, 254.205.2597
PLAN SIZE: Width: 20 feet; Depth: 64 feet 6 inches; Living area: 1,505 sf

Garage apartments aren’t a new idea; many neighborhoods built in the 1920s and ’30s used rear alleys to access detached garages containing living quarters, often called granny flats. Providing an affordable home for first-time buyers is a challenge, but income from renting out a garage apartment can change the financial picture. An accessory dwelling unit (ADU) can also be rented to a tenant, or provide a secluded place for guests or a boomerang kid, a home office or studio, or room for a caregiver. Many jurisdictions restrict or even prohibit these structures, but the growing demand for this type of housing is prompting acceptance. Shown below and at the center of the site plan is a two-bedroom, 2 ½ bath home with a loft. Each house faces a front sidewalk and a narrow street and has a private side yard. The alternate version (Plan 1), on each end of the site plan, offers a two-to-three-bedroom home with a two-car attached garage. Each home faces a central front courtyard and has a side yard for secluded outdoor living.

Garnett starter homes development drawing

Garnett starter homes key

Garnett starter homes house plans

Luxury Courtyard Homes

ARCHITECT: Donald F. Evans, AIA, The Evans Group,, 407.650.8770
PLAN SIZE: Width: 30 feet; Depth: 94 feet; Living area: 3,677 sf

Evans luxury courtyard homes elevation

This luxury home, an attached, three-story courtyard house, has five bedrooms, 4 ½ baths, plus a 550-square-foot granny flat over the garage. Attached living is a lifestyle choice; it means opting to forgo the exterior maintenance of your home. At the same time, buyers don’t want to give up spacious living with a private courtyard pool, two-car garage, and front and back porches. This home omits nothing—except time- and money-consuming exterior maintenance.

The Evans Group Luxury courtyard homes house plans

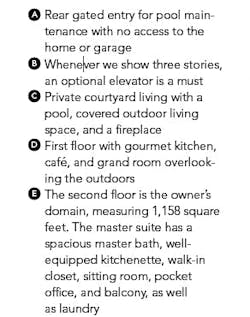

The Evans Group Luxury courtyard homes house plans key

The Summit

ARCHITECT: Richard Handlen, AIA, LEED AP, EDI International,, 415.362.2880
PLAN SIZE: Width: 92 feet; Depth: 110 feet; Living area: 6,000 sf

EDI The Summit motor court elevation

This three-story home has four bedrooms, four baths, and an elevator. It was designed to sit atop a knoll and take advantage of 360-degree views to San Francisco, the Bay, and the mountains. Given the moderate year-round climate, all rooms have easy access to porches or terraces. A roof deck over one of the garages is covered with an artificial lawn to create additional flat yard space.

EDI The Summit plans

The Summit Motor EDI International plan key

The Oakside

DESIGNERS: GMD Design Group, Scott Gardner, AIA,, 919.320.3022
Donnie McGrath,, 770.375.7351
PLAN SIZE: Width: 58 feet; Depth: 92 feet; Living area: 3,425 sf

GMD The Oakside elevation

This home is designed to take advantage of views to the rear, with an expansive foyer that provides long views throughout the home. Kitchen, breakfast room, and great room are arranged in a linear fashion to maximize sight lines to the rear of the home. Two 16-foot-wide multi-panel glass doors provide connectivity to the outdoor patio and covered porch. The second-floor bonus room overlooks the rear of the home and offers abundant natural light.

GMD The Oakside plans and key

Desert Mountain Villas, Plan 1

ARCHITECT: Robert Hidey Architects,, 949.655.1550
PLAN SIZE: Width: 45 feet; Depth: 87 feet; Living area: 2,800 sf (includes optional second story)

Planned for the 8,000-acre private golf course community of Desert Mountain, in north Scottsdale, Ariz., these luxury vacation villas are being designed in a desert contemporary style that recalls the work of Richard Neutra and Palm Springs Modernism. Views of the surrounding Jack Nicklaus golf courses and dramatic scenery of the high Sonoran Desert will be available from the great room, with its 12-foot-high ceiling, as well as the master suite and optional second-floor bonus room and covered deck.
Robert Hidey Desert Mountain Villas, main and upper level plans

Robert Hidey Desert Mountain Villas, Plan 1 key
