Proper Installation: The Key to Long-Lasting Windows and Doors
Key Highlights
- Advanced hardware and stricter tolerances necessitate a high level of care during window and door installation.
- Proper frame assembly, sill pan installation, and anchoring are vital for long-term security of systems.
- The string test is an effective way to avoid bowed headers on sliding doors.
Luxury windows and doors are notoriously engineered to extremely tight tolerances, and for good reason. This precision is exactly what enables them to deliver expansive, uninterrupted views while maintaining top-tier performance. However, small margins for error also mean that even minor installation mistakes can translate into long-term operational issues, water intrusion, and energy loss.
This underscores the critical importance of careful preparation and meticulous execution when installing high-end windows and doors.
Understanding common installation pitfalls and how to avoid them is key to preventing costly callbacks while preserving the longevity and refined elegance homeowners expect.
Priority One: Proper Frame Assembly

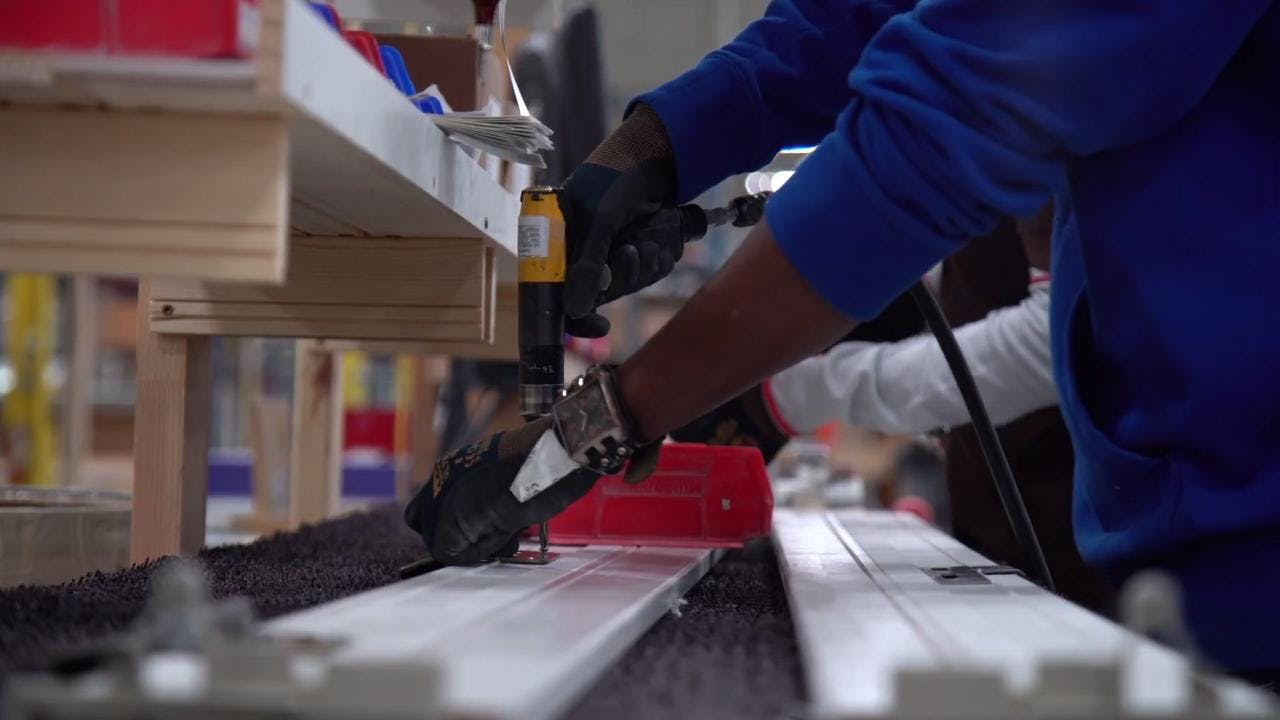

While many high-end window and door manufacturers assemble frames in the factory before shipping, the task may fall on the installer to assemble systems in the field.
When frames are shipped as individual components, proper assembly on-site is critical. One common misstep is not sealing the units. Installers should apply sealant at all corners and along the back of the frame to create a continuous barrier before setting it into the opening. Without these seals, gaps can create a direct path for air and water intrusion, leading to costly damage. Ultimately, frames should be fully assembled, sealed, and squared prior to setting into place.
Working within Tight Tolerances
Luxury windows and doors have exacting specifications, which may require additional time and attention to ensure the frame is plumb and square before anchoring.
For example, Fleetwood’s windows and doors allow for a tolerance of approximately 1/16 inch, requiring precise shimming to achieve proper alignment.
Before securing the unit, preparing the rough opening with ¼ inch clearance on each side (height and width) will allow builders to squarely place the window or door within it, and then shim as needed. Then, corner-to-corner measurements (measuring from top-left to bottom-right and vice versa) ensure the most precise fit possible. Finally, a laser level allows installers to check and verify uniform placement at 180 degrees.
Success with the Sill Pan, and Anchor Down
A sill pan is a critical line of defense for windows and doors. Installed beneath the unit, this waterproof, U-shaped flashing component is designed to collect and redirect any water that penetrates the system. This protects the subfloor and surrounding framing from moisture, rot, mold, and long-term damage.
While some manufacturers offer high-performance, proprietary drainage products like Fleetwood’s Arche-Duct system, many crews rely on generic sill pans. And while installers are not typically required to use a manufacturer-specific product, failure to install a sill pan altogether often leads to issues over the life of the structure.
Therefore, make sure the sill pan is properly installed per manufacturer guidelines, fully sealed, and configured to allow for proper water drainage. This helps minimize callbacks, protect the structure, and ensure long-term performance for occupants.
However, proper water management at the sill is only one part of a successful installation. Equally important is how the unit is anchored within the opening.
Anchoring the window or door with screws through the jambs or head is generally recommended as opposed to anchoring directly through the sill.
For thermally broken systems, fasteners should be straddled, meaning one on each side of the thermal break. Installing a single fastener directly through the thermal break is not recommended, as it can lead to twisting or bending of the frame. For non-thermally broken systems, a single properly placed fastener at each anchoring point is sufficient.
Avoiding Bowed Headers
On large sliding door systems, a bow or dip in the head of the frame is a telltale sign of an error. This is often caused by inadequate structural support or a misstep when anchoring. This misalignment may be imperceptible to the eye but becomes evident when attempting to operate the door.
Luxury, large-format doors (like Fleetwood’s 3070 Series) are designed to slide for smooth, effortless operation. Resistance, stiffness, or otherwise impeded movements upon opening or closing is a sign of an alignment issue.
A string line test is a useful way to determine the source of misalignment. By pulling a piece of string taut from one corner of the header to the other, installers can check for any deflection. Gaps, crowns, or variations between the string and the frame may indicate a bow that can impact performance. Additionally, checking for consistent clearance between the door panel and the frame at the top, bottom, and sides can help identify whether the issue stems from the frame or the door leaf itself.
Finally, while joining tracks typically come preassembled, making sure the head, sill, and jambs all fit together tightly without gaps is key to the smooth operation of sliding doors. Precise alignment of tracks and panels is equally important to maintain consistent sightlines across the entire system. Selecting a manufacturer that conducts the preassembly can streamline this process and help prevent issues over time.
Final Checklist for Lasting Results
Once installation is complete, technicians can perform a few quick checks to ensure the unit operates as intended.
- Sliding doors: Verify smooth operation along the track. Resistance, unusual sounds, or difficulty engaging the latch can indicate misalignment or improper assembly of the hook and strike mechanism.
- Casement and awning windows: Ensure the sash opens and closes freely.
- Cam handles: Twist and push the handle to confirm proper alignment and smooth operation.
- Roto cranks: Operate the crank to make sure the window opens and closes without undue pressure or force.
Ultimately, proper installation is the foundation of longevity and reliability for high-end windows and doors. By carefully assembling frames, managing tight tolerances, and checking for common alignment issues along the way, installers can deliver luxury systems with years of trouble-free service for occupants.
