Tandem Duplexes

The Evans Group
Donald F. Evans, AIA

Plan size
Approx. 2,000 sf

Many cities are now embracing and encouraging infill configurations that depart from tradition. We have seen similar diagrammatic guidelines (with variations) from numerous municipalities and are excited to be able to design this type of solution without pushback. A two-story home with approximately 2,000 square feet of living area and a two-car garage with only half of the lot cost, yet in a desirable and centrally located neighborhood, is an ideal option for Millennials.

A. Front elevation hews to a simple, clean Santa Barbara style
B. Side elevation contains garages and rear unit

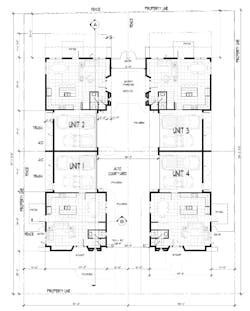

C. Site plan shows four homes on two standard infill lots



The Paluxy Courts

Larry W. Garnett, FAIBD

Plan size
Width: 85 feet
Depth: 96 feet
Total Area: 9,795 sf
11 flats and studios
Unit A - 955 sf, 1 br & study (4) flats
Unit B - 660 sf, 1 br (2) flats
Unit C - 640 sf, 1 br (2) flats
Unit D - 785 sf, 1 br (1) studio
Unit E - 1295 sf, 2 br (2) studios

Courtyard Housing offers a unique blend of multifamily homes with single-family scale and massing. Front and side stone entryways open into an interior courtyard where the main entrances to each home are located. By arranging the homes around this courtyard, each of the one- and two-bedroom units has an abundance of natural light. While this configuration may be ideal for an infill site, a group of these buildings could also be the solution for multifamily housing in an area where there is resistance to the massive garden apartment concept.

A. Each home opens to the central courtyard
B. Covered entryways lead to the courtyard
C. Two-bedroom studios, each with private bedroom balconies



The Eastwood Residence

GMD Design Group
Scott Gardner, AIA

Donnie McGrath

Plan size
Width: 68 feet
Depth: 76 feet

Planned for an infill site in Raleigh, N.C., this 4,800 square-foot on-the-boards luxury home is designed to maximize the presence of the home on the lot. By creating a porte cochère that leads to a motor court, the entire width of the building envelope can be utilized.

A highlight of the floor plan is a generously sized kitchen, breakfast room, and keeping room space, in which the family can gather. The use of windows, often on opposing walls, allows many spaces in the house to be flooded with natural light.

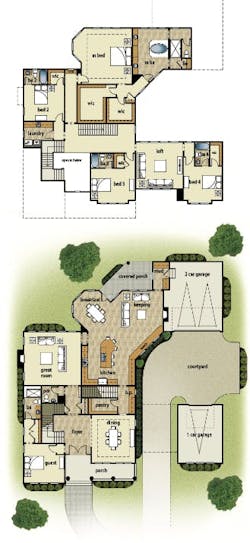

A. Large front porch is both entry and an outdoor living space
B. Loft creates a porte cochère over the driveway
C. Open foyer and main stair add drama to entryway
D. Service area offers access to secondary stair, pantry, and butler’s pantry
E. Great room is set apart from the kitchen and keeping room
F. Motor court provides parking and a secure play area for kids
G. Breakfast room, kitchen, and family room function as one large space and the home’s hub
H. Windows overlooking an uncovered portion of the rear yard admit lots of natural light
I. Covered porch behind the keeping room is also part of the breakfast room, providing additional outdoor living space
J. Large mudroom has abundant natural light
K. 3-car garage has a 2-car in the rear portion of the home and an oversize third bay located in the front portion of the motor court
L. All secondary bedrooms have a private bath and walk-in closet
M. Loft is a great informal space for the family to gather
N. The two stairs arrive at a central location in the home’s core
O. Separate walk-in closets provide plenty of storage
P. Master bedroom with sitting area
Q. Master bath with oversize shower and lots of windows



Parkside Homes

KGA Studio Architects
John Guilliams, Designer

Plan sizes
Parkside Townhome
Main: 347 sf
Mid: 824 sf
Upper: 808 sf
Total: 1,979 sf
Width: 22 feet
Depth: 48 feet

Urban Brownstone, Model 2
Main: 910 sf
Upper: 1,375 sf
Total: 2,285 sf
Width: 24 feet
Depth: 74 feet

Urban infill lots that take up an entire block are rare. This site was one of the last available in a successful Air Force base redevelopment. We envision two different yet complementary homes: the Parkside Townhome, and the Urban Brownstone, a single-family detached home. While the homes in Parkside will have a contemporary feel, the floor plans will resemble a more traditional home, providing the conveniences, efficiency, and livability that today’s buyer desires.

Parkside Townhome


A. Owner’s entry with bench and walk-in closet
B. Front deck
C. Open floor plan includes living, dining, and kitchen
D. Work alcove
E. Barbecue deck

Urban Brownstone, Model 2


A. Living space with expanded views of park
B. Open floor plan includes living, dining, and kitchen
C. In-unit elevator
D. Owner’s entry with bench and walk-in closet
E. Optional dog run
F. Master suite with park views
G. Office, loft, or master retreat
H. Kids’ space
