4 Detached Home Plans That Reduce Building Costs

Current conditions make providing affordable detached homes even more challenging. These designs offer solutions


By Larry W. Garnett, FAIBD, House Review Lead Designer June 6, 2021
Shea Crescendo home exterior
DTJ Design minimizes costs by adhering to a four-corner foundation. | Photo: courtesy DTJ Design
This article first appeared in the May/June 2021 issue of Pro Builder.

Finding solutions for value-priced housing has always been difficult, but current material shortages and climbing prices make the goal of providing affordable detached homes even more challenging. It’s now imperative to create designs with simple footprints, lower roof pitches with minimal offsets, and two-story designs with stacked walls in order to reduce building costs.

Although homebuyers have come to expect upgrade finishes—even in so-called starter homes—there’s a looming reality that such luxuries just may not be feasible. As we strive to reduce building costs, a look back to earlier eras—when homes had laminate counters, smaller baths, and garages were not standard—may be the direction we need to consider.


RELATED




Crescendo Plan 2201

Designer: Seth Hart, DTJ Design, [email protected], 303.443.7333

Dimensions: Width: 22 feet; Depth: 44 feet; Living area: 2,125 sf

crescendo street scene



Two of the key determining factors that directly affect building costs are density and construction efficiency, and this home was designed with a strategic focus on attainability. Essentially a detached townhome, it utilizes a compact footprint and 3-foot side setbacks to maintain the privacy of a single-family home while achieving densities of around 9.5 dwelling units per acre. Construction efficiency was achieved with: a four-corner foundation; stacking all exterior walls; simple roof forms with pitches that do not exceed 6:12; and exterior dimensions that minimize construction waste. Second-floor covered decks are optional, to help keep base costs low, and an additional side deck can be optioned at end-lot conditions to enhance outdoor living.

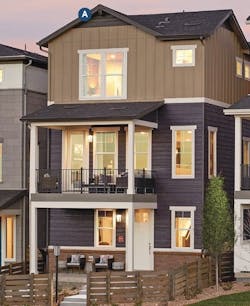

Shea Crescendo exterior elevation



A: Simple roof forms without higher slopes help keep costs down, while thoughtful roof articulation is added to provide character to the home

B: Four-corner foundation minimizes costs

C: Optional covered decks keep base costs lower while offering the possibility of enhancing outdoor living. They also create variety among the elevations and articulate street scenes within the community

crescendo plan



Layla

Architect: Todd Hallett, AIA, TK Design & Associates, [email protected], 248.446.1960

Dimensions: Width: 34 feet; Depth: 54 feet, 8 inches; Living area: 2,555 sf

An efficient floor plan will always be more cost-effective than a plan with underutilized space. Reducing building costs is key to being able to upgrade appliances and curb appeal and to allocate the budget to interesting features, such as the collapsible door and courtyard in this design. This plan keeps the structure simple and effective yet still allows for an owner’s suite on the first floor. The open floor plan maximizes the space for multiple uses and functions, creating surprise and drama in the home.

layla rendering



A: Board-and-batten siding on most of the front exterior offers an authentic touch while reducing costs compared to brick or stone claddings

B: The courtyard provides additional space for outdoor dining, exercise, and entertaining, and invites natural light into the home while also creating interest

C: The narrow, compact floor plan is efficient yet allows for an owner’s suite on the first floor

D: By reducing building costs, budget dollars can be allocated to more exciting features, such as a collapsible/accordion patio door

E: The second floor neatly aligns with the first floor, saving on framing costs and eliminating the need for pricey beams

layla floor plan 1layla 2



The Lennox

Designers: GMD Design Group, Scott Gardner, [email protected], 919.320.3022;
Donnie McGrath, [email protected], 770.375.7351

Dimensions: Width: 30 feet; Depth: 36 feet; Living area: 1,599 sf

It is possible to design an affordable home that also incorporates current style trends. This house provides buyers with a spacious, open plan while limiting lumber spans and beams. In addition, the house fits on a compact 30-foot-wide by 36-foot-deep footprint to reduce grading costs and allow more homes on smaller lots.

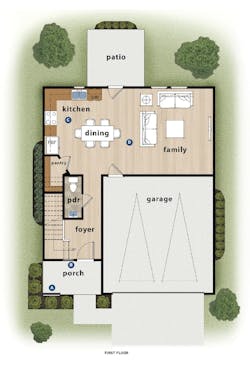

lennox plan 1

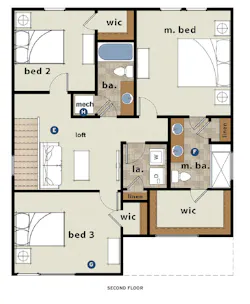

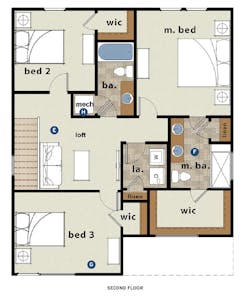

lennox plan 2

A: Front entry porch uses a wall rather than column

B: A separate small window helps bring natural light into the foyer

C: Kitchen designed for minimal cabinet costs; a walk-in pantry provides generous storage at low cost

D: Open areas of the plan are in line to reduce floor joist spans and beams

E: Loft location minimizes hallways

F: Standard shower pan, shower size, and plumbing wall shared with laundry

G: For simplicity, part of front wall stacks on entry porch below

H: Mechanical systems are centrally located and in conditioned space to reduce the cooling load

lennox plan 3



Holden Street Cottage A

holden street drawing

Designer: Larry W. Garnett, FAIBD, [email protected], 254.205.2597

Dimensions: Width: 26 feet; Depth: 59 feet, 8 inches; Living area: 938 sf

This small cottage is part of a project that strives to provide a neighborhood of attainable homes for seniors and first-time buyers. With a footprint that incorporates minimal offsets and a simple 7:12 roof design with short spans, the design utilizes materials efficiently. However, it’s the lack of a two-car garage that really impacts the price. An average 420-square-foot garage would consume more than 40% of this 938-square-foot home—about the same amount of area as the home’s living area, kitchen, bath 2, and dining booth combined! Perhaps it’s time to reconsider just how important our automobiles really are.

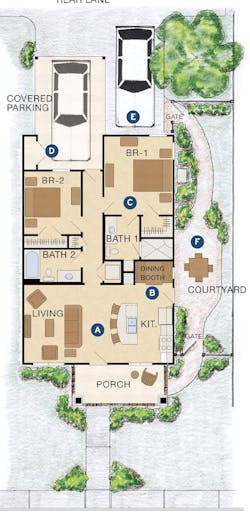

holden floor plan



A: Open living/dining

B: Built-in dining booth

C: Bedroom 1 features a walk-in closet and 42-inch-by-60-inch shower

D: Covered parking with storage

E: Parking space

F: Secluded side courtyard with gates at front and rear
