Scroll down to see more about this casita design by TK Design & Associates.
This article first appeared in the PB November 2014 issue of Pro Builder.

If you search for a definition of casita, you’ll find it refers to a small dwelling for laborers originating during the 1920s in Mexico and the southwestern United States. While our current casita designs are still small, they now offer a variety of innovative accommodations for guests, in-laws, older children, and home offices, making them a great solution for multigenerational households.

Although we continue to see the casita as a detached structure, the term is also used to describe attached living quarters. As we see the need for multigenerational housing continue to increase, these casitas or in-law suites are finding their way into many new homes.

The following designs offer a variety of ideas for both detached and attached secondary living spaces. While some offer compact living arrangements, several provide spacious layouts that include separate living, bedroom, and kitchen areas. With the ever-increasing concerns regarding aging-in-place and multigenerational families, these flexible spaces seem to be sound investments for the present and the future.

Casita Flex Options

Casita designed by the Evans Group

A. Casitas are often associated with certain styles of architecture, but the home can have any style including this very traditional one with lap siding and a front porch.

ARCHITECT: Donald F. Evans, AIA, The Evans Group,, 407.650.8770

Floor plan 1: 2,365 sf; 55-by-80-foot envelope
Floor plan 2: 2,728 sf; 60-by-73-foot envelope

A casita flex option can be shown as a standard garage that can flex to a bedroom, bath, closet, and kitchenette. The casita fits into the same 11-by-21-foot envelope with an 11-by-13-foot bedroom that is large enough for a king-size bed. Casitas are a great flex option because they can become a suite for an in-law, boomerang kid, live-in care, home office, or anything else the homebuyer can imagine. Again, both plans show our goal of having no garage doors facing the street. The elevation becomes all architecture.

Evans Group design for a casita (plan option 1)

B. (Floor plan 1) Completely separate casita option with porte cochere covered entry to the main house.

Evans Group design for a casita (plan option 2)

C. (Floor plan 2) Completely separate casita located at the front of the lot, creating a buffer between the street and home.

In-Law Suite

ARCHITECT: Victor Mirontschuk, AIA, EDI International,, 212.228.8411

In-laws or grandparents can stretch the seams of a conventional single-family home, as the older generation attempts to recreate the independence of their former lives. Grown children moving back home after college, divorce, or job loss can create a similar strain in multigenerational homes. Accessory apartments allow families to accommodate live-in relatives with privacy and dignity. Most common is a few rooms atop a garage or walk-out basement, with a kitchen and private stair access.

Motor court in-law suite design by EDI International

This home includes a private-access, self-contained apartment. The 4,466-square-foot house wraps around a central auto court. One of its wings contains the approximately 650-square-foot apartment, which occupies three levels next to and above the driveway as a sort of porte cochere.

The first level includes an open-space kitchen and living room. The second floor includes a flexible loft space that can be used as a second bedroom, sitting room, game room, TV, or computer room, as well as a large closet and full bath. A third intermediate level (not shown) includes the bedroom.

The apartment has its own mechanical systems such as heating, air conditioning, and hot water, so it is not dependent on the main house. Having self-contained mechanicals allow the systems to be shut off when the apartment is not in use.

Floor plan for EDI International's in-law suite design

A. Kitchen
B. Living room
C. Stairs
D. Loft
E. Closet
F. Bath
G. Sleeping loft
H. Volume

Plan 56581

DESIGNER: Larry W. Garnett, FAIBD,,, 254.897.3518

PLAN SIZE: Width: 21 feet; Depth: 27 feet, 8 inches; Living area: 506 sf

With 506 square feet of living space and designated areas for sleeping, living, and dining, this small cottage offers a great deal of flexibility. Although ideal for a weekend getaway, the small footprint allows this plan to be built in the backyard for use as guest quarters or an in-law suite. For Baby Boomers hoping to age in place, this might even become a caretaker’s quarters.

Plan 56581 exterior

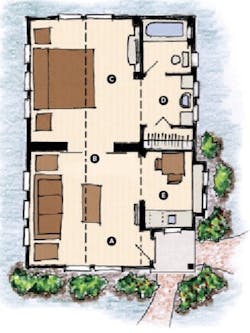

Larry Garnett design for an in-law suite
A. A vaulted ceiling and clerestory windows add volume and natural light to the living area.
B. Sliding rail doors provide privacy for the sleeping area.
C. The sleeping area has a vaulted ceiling and a built-in media and storage wall.
D. Additional clerestory windows provide light into the dressing area.
E. An alcove offers space for a small kitchen and dining area.
Larry Garnett design for an in-law suite

Plan A

ARCHITECT: Todd Hallett, AIA, CAPS, TK Design & Associates,, 248.446.1960

Tiny houses, micro-, small-, and humble-homes are all part of a movement within the design community, with some of the houses as small as 80 square feet. Many of these homes are built on a trailer for portability, which avoids building code concerns and the taxes associated with a more permanent structure. But tiny house designs can be permanent structures, residing within the confines of a larger home’s property. With an emphasis on economical use of space, this casita adds an additional living area to an existing home. The casita serves multiple functions, both aesthetic and functional.

For privacy, the entrance to the casita is hidden inside the tower on the way to the front door of the main house. The entry into the well-lit living room reveals a cozy fireplace at the far end flanked by two large windows. To the right and opening into the enclosed courtyard is a pair of French doors, revealing the partial source of light. Past the well-appointed kitchenette opposite the entrance is the hall leading to the bedroom suite, which includes a generous closet for extended stays. Facing the interior courtyard of the house, the bedroom can be opened up on warm summer nights to capture cool breezes. The casita’s independent mechanical system allows for maximum comfort and control.

Plan A Cadence elevation: casita design

Floor plan for an in-law suite designed by TK & Associates
A. The compact plan is well lit and ventilated.
B. An independent mechanical system allows for greater control of the space’s climate.
C. The full bath features a large walk-in shower.
D. French doors opening into the courtyard from both the living area and the bedroom provide light and ventilation in all seasons.
E. Privacy is key when space is limited. Here the entrance is off to the side of the main entrance and takes advantage of the entrance for a separate, private porch.
F. The kitchenette can be customized for a variety of culinary functions.
G. The fireplace is the focal point of one end of the room with generous windows on either side.
H. An extended stay closet will leave guests wishing they had packed that extra pair of shoes.
